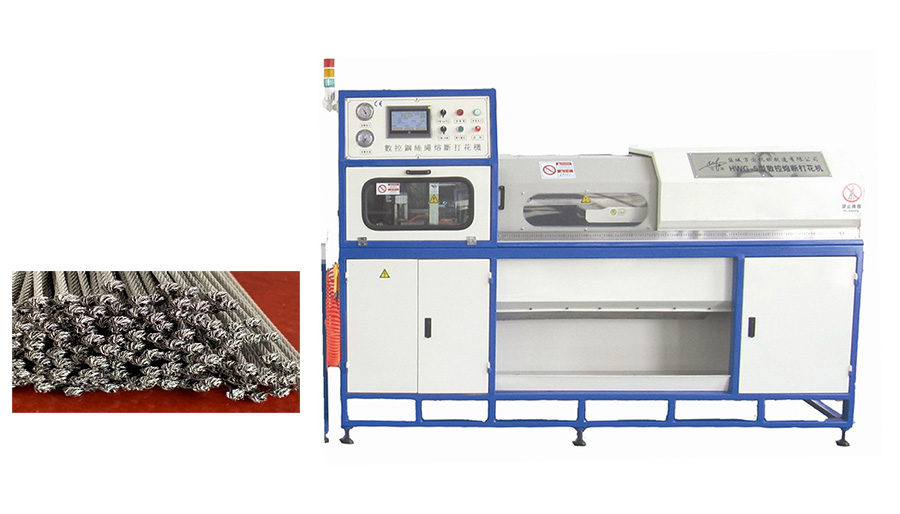

HWG-5type CNC wire rope fusing / cutting / patterning machine (4 pieces/6 pieces)
Overview
It is suitable for cutting, peeling and patterning of plastic coated steel wire rope with fixed length, precise length and stable patterning size.
Equipment specifications and functions
Processing specification: φ1.0-2.5mm, length 200mm-2500mm; length can be customized
Beat: 1 out of 4/6. 7-9s /second;
Voltage: three-phase four wire (380 + n) power: 3.5kw
Overall dimension: 3800x850x1800mm; weight: 1350kg
Function: CNC system controls the movement of the whole machine, the length can be set at will, the six working modes can be switched at will, and the peeling length and the size of flower can be adjusted;
(customizable)
