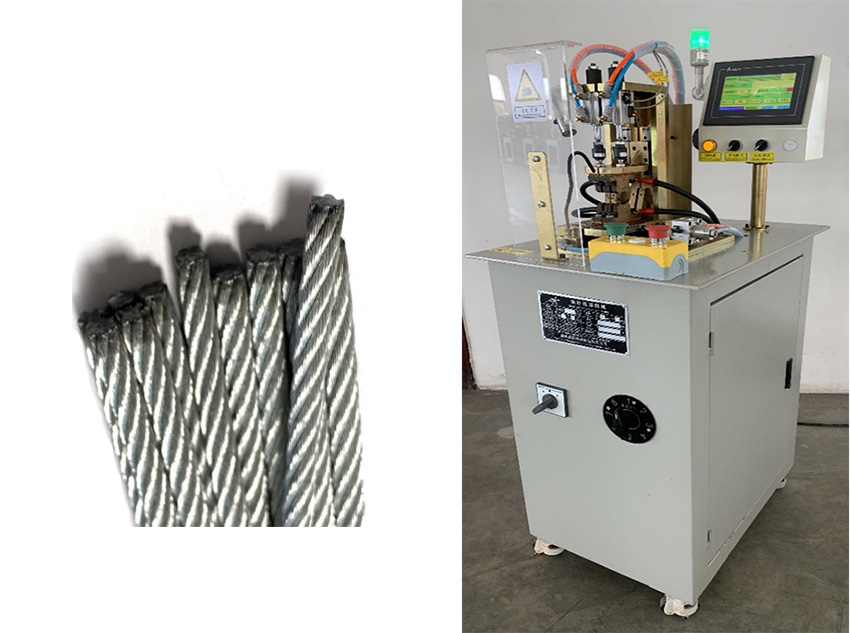

HWG-3Atype wire fusing machine
Overview
Use low voltage and high current to clamp various specifications of wire rope between two electrodes, and fuse quickly within 0.5 seconds. Adjustable fusing end effect
Equipment specifications and functions
Processing specification: φ 1.0mm-6.0mm,
Beat: 1 out of 1. 3s / piece;
Voltage: three-phase four wire (380 + n) power: 5-8kw
Overall dimension: 800x600x1600mm; weight: 350kg
Function: CNC system controls the action of the whole machine, and the fusing current and the fusing end face effect can be adjusted;
(customizable)
