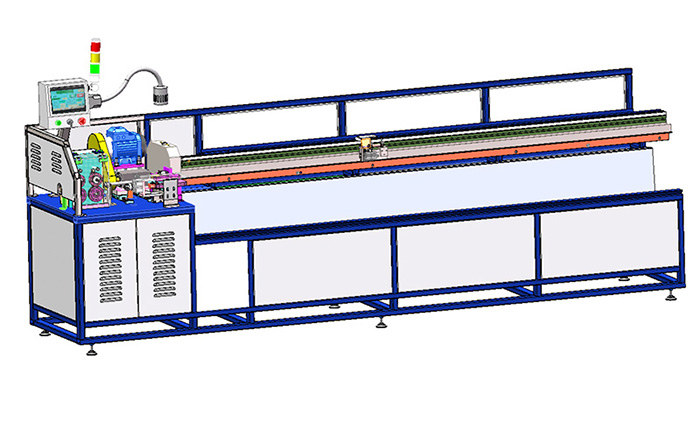

HWG-3Atype Auto hose cutting machine
Overview
It is suitable for cutting straight wire pipe and spiral pipe with fixed length, vertical cutting fracture, small length error and high stability.
Equipment specifications and functions
Processing specification: φ 4mm-9mm, length 200mm-2500mm; length can be customized
Beat: 1 out of 1. 3-6s / piece;
Voltage: three-phase four wire (380 + n) power: 3kw
Overall dimension: 3500x850x1600mm; weight: 650kg
Function: CNC system controls the operation of the whole machine, the error of the two-stage speed feeding length of the stepping motor is small, the efficiency is high, the use and maintenance is convenient, and the noise is low.
