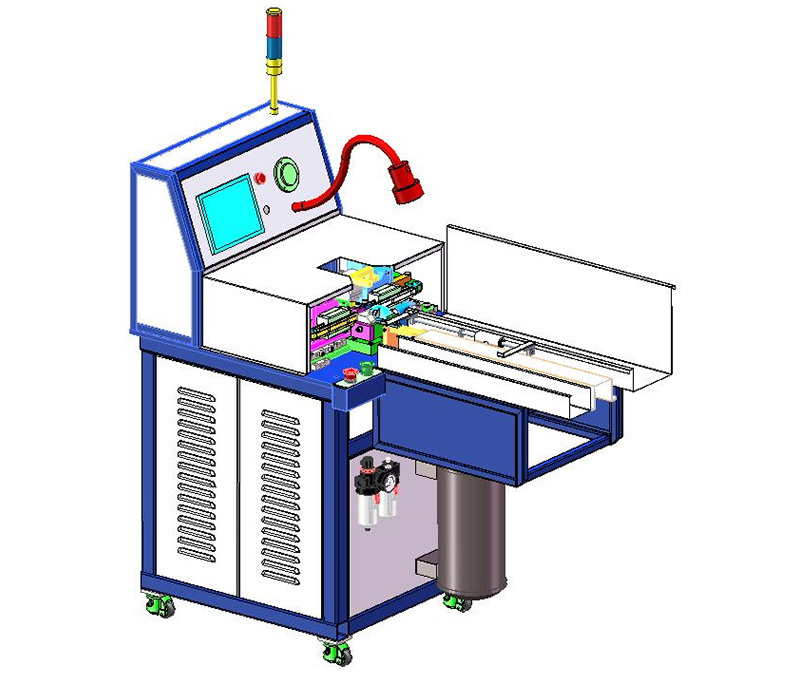

It is suitable for twice accurate cutting and patterning of steel wire rope. The cutting length and patterning size can be adjusted.

Processing specification: φ 1.0mm-2.5mm, length 18mm-30mm;
Beat: 1 out of 1.  3s / piece;
Voltage: three-phase four wire (380 + n) power: 0.35kw
Overall dimension: 1500x800x1600mm; weight: 300kg
Function: CNC system controls the movement of the whole machine, and the cutting length and the size of the pattern can be adjusted;
