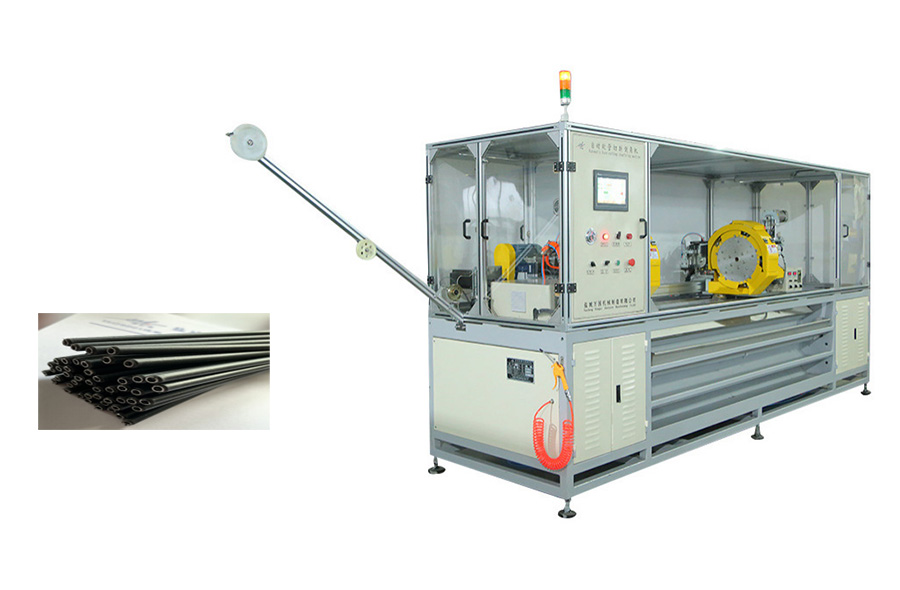

HWG-5type Wire rope fine cutting and patterning machine
Overview:Latest model
It is suitable for the processing of fixed length, cutting, internal and external synchronous chamfering of spiral pipe, with vertical cutting fracture and high chamfering stability and consistency.
Equipment specifications and functions
Processing specification: φ 3mm-8mm, length 170mm-2200mm; length can be customized
Beat: 1 out of 1. 4-5s / piece;
Voltage: three phase four wire (380 + n) power: 6.5kw
Overall dimension: 3600x1050x1800mm; weight: 1500kg
Function: CNC system controls the whole machine action, high efficiency, convenient use and maintenance, low noise.
(customizable)
